Dashboards are project-level tabs containing graphs and visualizations that let you zoom out from the day to day to quickly understand your team’s progress. These charts help to instantly identify potential blockers in your team’s work and subsequently move the project forward.
The Dashboard tab is a good reference point to find data to get a quick pulse on how the project is progressing.
This feature is available for all paid tiers in Asana (Premium, Business and Enterprise).
How to Access:
- From your chosen project click the Dashboard tab.
You may have to click on More to access your Dashboard, depending on your screen/window size.
The charts in Dashboards will auto-populate when you first land on the tab. You can also add customized charts and numeric roll-ups. Dashboards will automatically update every time you visit the tab or refresh the page, so you know the information is always up to date.
Types of Charts
Incomplete tasks by section.
Click the Pencil icon. For example, you have options to swap out section for completion status or any custom field in the menu so you can see a vertical distribution of data points to compare and contrast.
- View task count by section to understand where in your team’s process there are potential bottlenecks.
- You can swap in any of your custom fields to see the status of the project and where there are blockers.
Task count by completion status.
Here you can:
- Get a quick pulse on how big each of your work slices are, for example are your incomplete tasks a tiny, or large piece of the pie?
- Visually represent tasks by completion status or tasks by section custom field by swapping out one for the other or click the Pencil icon to customize your chart.
Task count by assignee.
- Understand how work is distributed across your team. At a quick glance you can gauge who is performing and who might be overloaded.
- Click the Pencil icon to customize your chart.
If you hover over the assignee lollipop you can see how many tasks they have upcoming.
This chart helps you track your team’s velocity over time and how quickly your team is completing work.
Number Custom Field Sum
You can add a number field to your project to see its value in this chart.
Enhance your data report with a sum total of your existing numeric custom fields in a particular project. Whatever your individual custom fields are, they will populate the chart to create a roll-up summary. You can also click the Pencil icon to customize your chart.
We can sum up any of your numeric custom fields across the project. We recommend using this chart when comparing estimates to actuals, such as budget to actual costs, or if you want to quickly sum up the hours your team has spent on the project.
If you have numeric custom fields we will automatically pull those onto the Dashboard.
Adding Customizable Charts or Numeric Roll-ups
Group or filter data by Assignee, Custom Field, Task Type, Completion, Status, or Date. You can Layer multiple filters to get detailed insights and add custom titles to your charts.
When creating a new chart, you can choose between Column, Donut, Lollipop or Number.
There’s a limit of 15 items that can be added to your Dashboard.
From the next window, you can customize your chart or numeric roll-up.
You must add a title to your chart before saving.

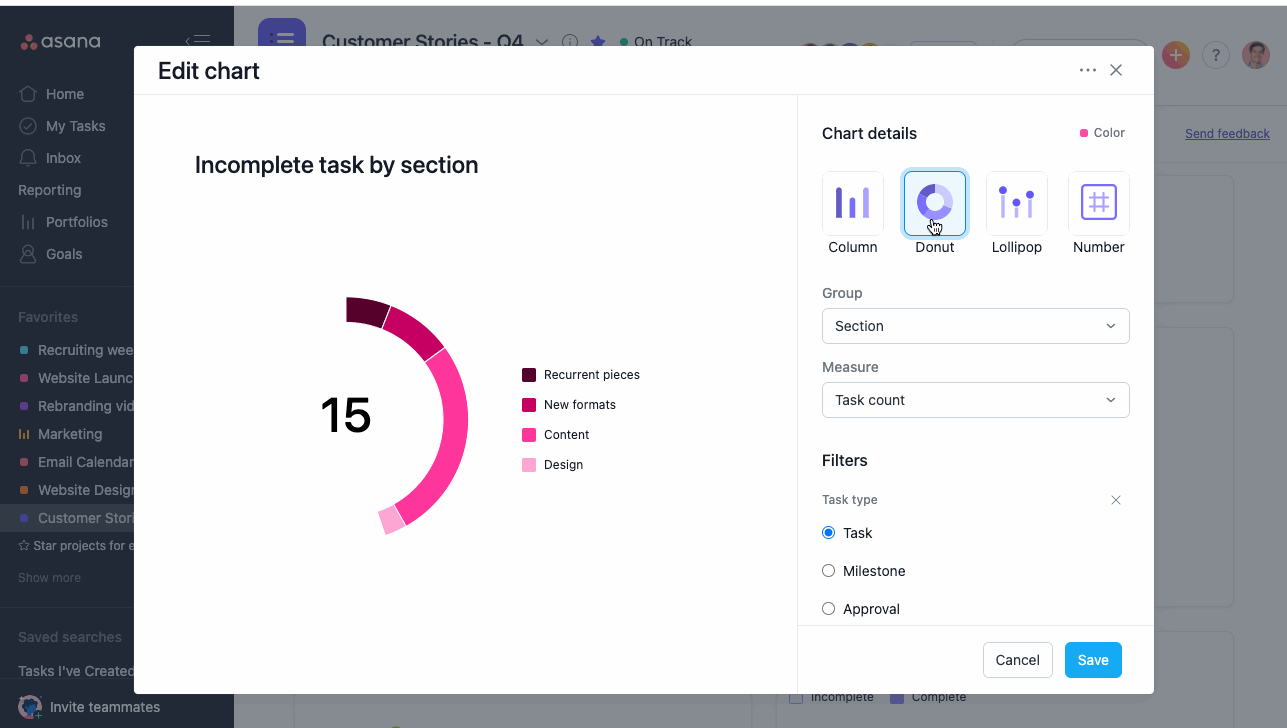

Editing a Chart
When editing a chart, you can:
- Choose the format of the chart (donut, column, lollipop) or numeric roll-up.
- Decide how to group your chart data (x-axis). For example by assignee, enum Custom Field, section, task type, completion status, task status (upcoming, overdue, complete, unscheduled).
- Choose how to measure your data ( y-axis). For example, use count of tasks or sum/average of numeric Custom Fields as a measure on charts and rollups. Donut charts cannot use average as their measure, since the numbers need to be parts of a whole.
- Layer filters on a single chart or numeric roll-up. For example, assignee, enum Custom Field option, section, task type, completion status, task status (upcoming, overdue, unscheduled), date filters. Within relative date ranges, you can also select which date (creation, completion, due) you want to use. These are chart-specific, not dashboard-specific filters.
How to edit your chart
To edit your chart, click on the Pencil icon next to selected chart.
From the next window, you can customize your chart to your specifications.
When you’ve finished making your edits, click Save.
Reordering Your Charts
You can reorder the layout of your charts using the drag and drop feature.
How to Expand Your Chart View
Click the expand icon to display more data and view your chart in a larger format.
How to Export a Chart
You can export each one of the charts to an image (png) individually.
If you want to add charts to your status update, download the chart and simply add as an attachment in the status builder. You can then drag it into an email, a Slack message or a presentation slide to report on team progress.
To download an image:
- Click on the three dot icon on the top right hand corner of the chart in Dashboard.
- Choose Download image.
You cannot export the whole Dashboard as one.
Removing a Chart
To remove a chart:
- Click on the three dot icon.
- Choose Remove chart.
How to Customize Your Chart by Color
By color customizing charts and graphs, this can help you instantly identify and differentiate any potential road blockers for your team at a glance. Applying a unique color to different charts helps to visually represent tasks by completion status or tasks by section custom fields. Custom colors can be pulled in for both filtered and grouped charts.
How to edit your chart
- Click on the Pencil icon next to selected chart.
- Select your desired color using the color picker in the upper right hand corner, click Save
Number Custom Field Colors
To keep colors based on number custom fields, select the grey ("none") color in the upper left hand corner of the color picker.
If you choose to group by custom field, we will automatically set the charts color to none to ensure that you see the custom field colors first.
Users feel confident with visuals because they have a clear, data backed picture of relevant work from which they can easily translate their story to a diverse group of stakeholders, building trust and facilitating fast action. You can see where you’ve come from and where you are going.
Managers, Directors, and Program Leads responsible for the execution of strategic goals need visuals so they can see progress in real-time, quickly flag issues and zone in on the work that matters most.
Dashboard in Asana is a data dashboard that displays key performance indicators relating to specific projects. It can display metrics for a project's overall performance and progress, or highlight particular problems that require further attention.
Offering visual data in your reports makes it easier for your audience to quickly grasp the information presented and then consider the outcomes from that data.
Use these features to :
- Monitor the work of one or more projects and identify constraints or roadblocks
- Track progress against goals and report the status to senior leadership
- Distill the biggest pain points into a problem statement/visual for stakeholders
- Gain valuable insights into your projects
- Bring data to life and be ahead of the curve
- Get a complete overview on project trajectory
By using these charts to report you are :
- Driving & simplifying workflow
- Being accountable and giving clarity
- Turning your data into actionable insights
- Sending a more impactful message more quickly
